SKYSHL 1310nm/24dB+1550nm/22dB SM OTDR OPM+OLS+VFL+Event Map+Loss Test Fiber Tester Compatible with SC+FC+ST+LC UPC&APC

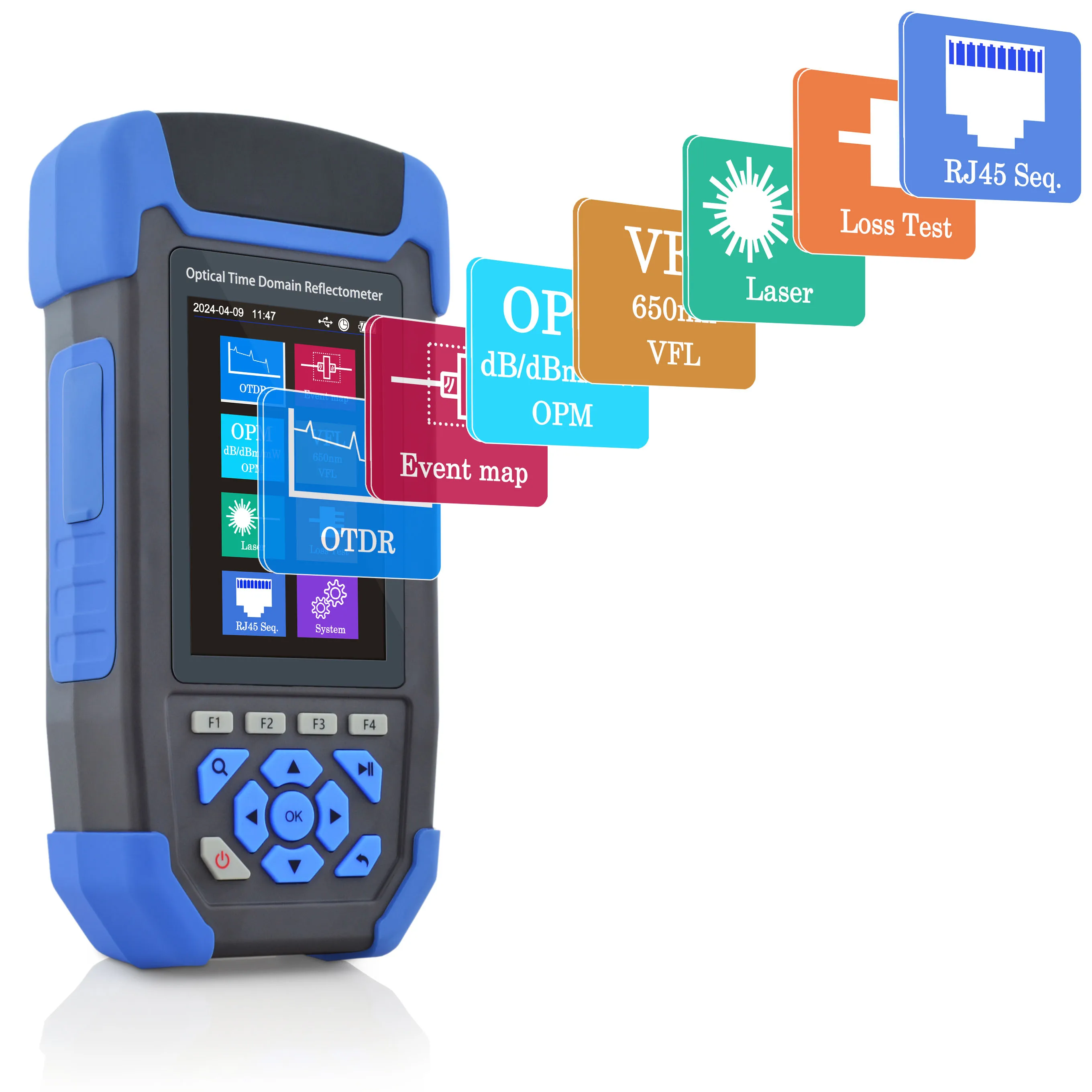

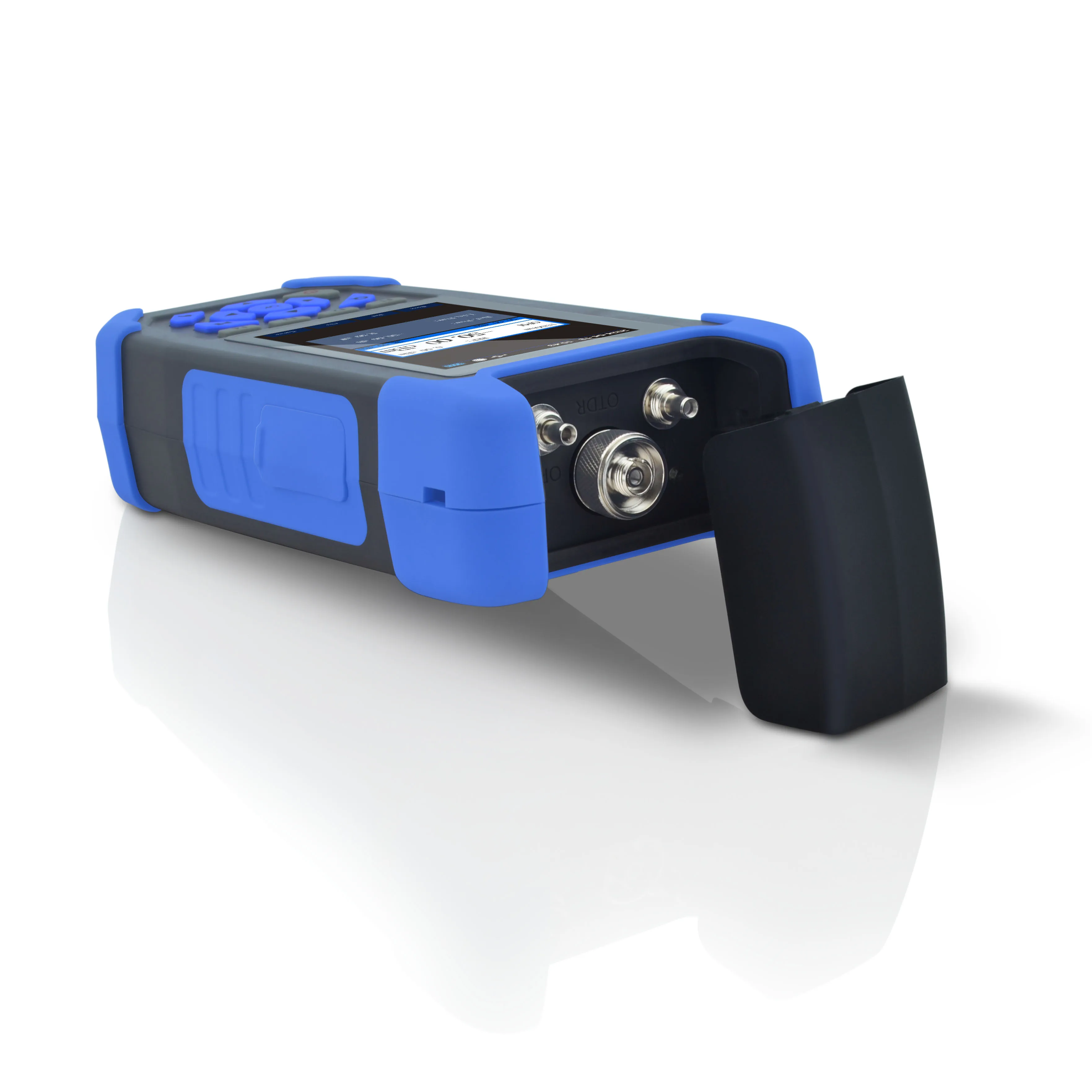

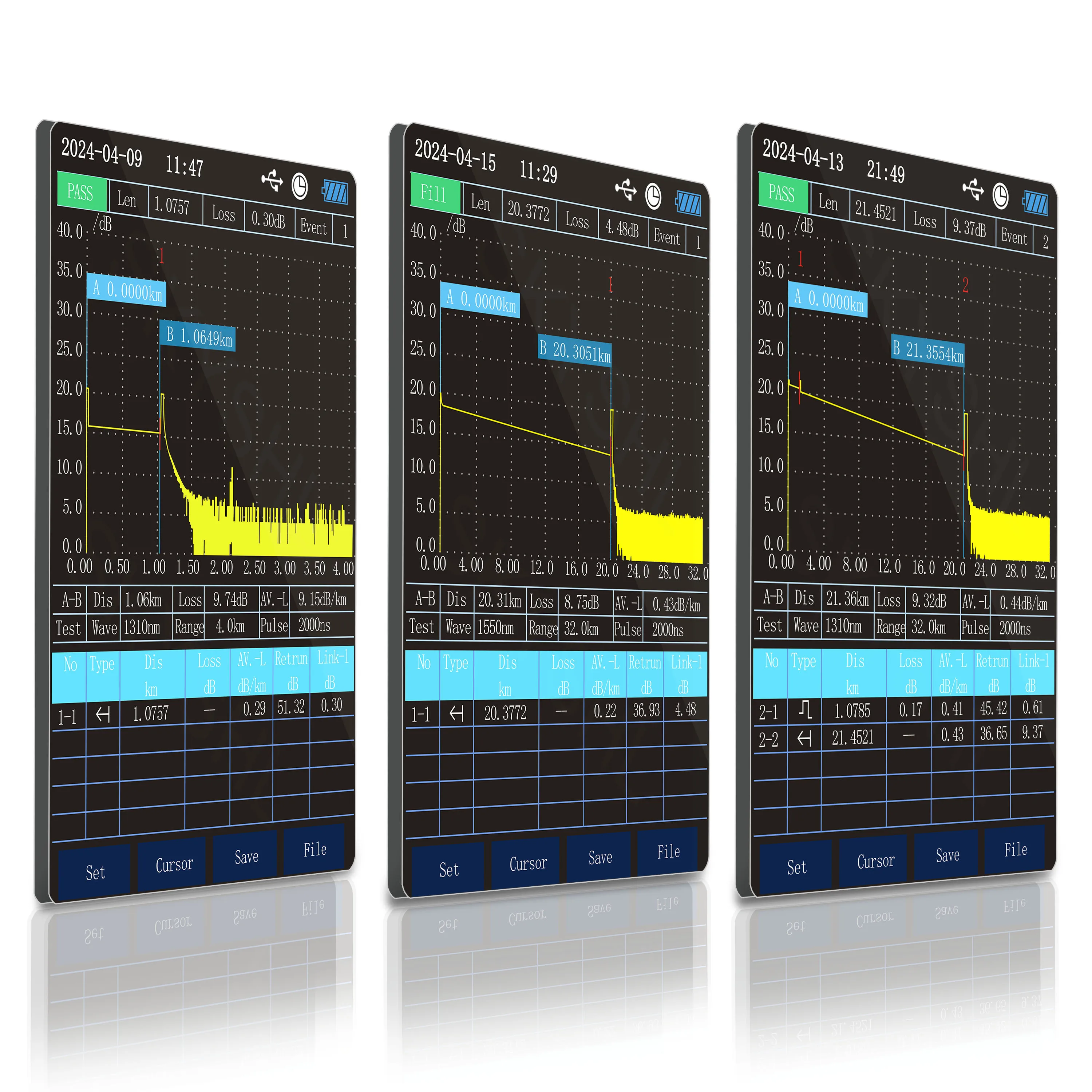

SKYSHL 1310nm/24dB+1550nm/22dB SM Fiber OTDR TesterSKYSHL provides a new Optical Time Domain Reflectometer(OTDR)--SS303T series. They are used to measure the fiber length and overall optical attenuation in a circuit. The analyzed data provides insight into the integrity of the fiber and any passive optical components (such as connectors, splices, splitters, and multiplexers) transmitted along the cable path.SKYSHL 1310nm+1550nm 24dB+22dB SM Fiber OTDR Key Features:1310nm+1550nm 24dB+22dB OTDR tester(Max Test Distance:60Km).The body of the SS303T is very small, and it is very convenient to carry outdoors.3.5-inch TFT high-definition color display.3.7V/4000mAh lithium battery, continuous 11-15 hoursIntegrate OPM, VFL, OLS,Optical Loss Test,RJ45 Cable Tracker and Event map(Graphical analysis).One touch operation, automatic analysis, and tailored OTDR user interface for different skill level.Very short Event dead zone(2.5m) and Attenuation dead zone(6m).Compatible interfaces: 2.5mm universal interface,SC, FC, ST, LC UPC&amp;APC adapter.Automatic OTDR, Manual OTDR, Event map,Smart Graphical analysis of fiber optic connectionsSupport for SOR formats.Smart OTDRThe Auto test lets you take advantage of the full power of your OTDR—bringing automation to a new level and enabling untrained technicians to become test experts in no time.With one click, the unit automatically performs link recognition, sets the optimal parameters and launches multiple acquisitions and analyses—at multiple wavelengths—consolidating the results obtained for every link section and every network element. Get accurate information right away on each link element and export it to a single report.Of course, you can also perform manual testing according to your actual optical fiber network. The parameter setting is also very simple, and it only takes a few steps to complete, such as wavelength,test range, pulse width, test time, etc. The curve obtained by manual test more satisfies your actual requirements.OTDR Test Curve and Event TypeA picture is worth a thousand words, and the OTDR picture (or &quot;trace&quot;) takes a lot of words to describe all the information in it!The slope of the fiber trace shows the attenuation coefficient of the fiber and is calibrated in dB/km by the OTDR. Connectors and splices are called &quot;events&quot; in OTDR jargon. Both should show a loss, but connectors and mechanical splices will also show a reflective peak. The height of that peak will indicate the amount of reflection at the event.Reflective pulses can show you the resolution of the OTDR. You cannot see two events closer than is allowed by the pulse width. Generally longer pulse widths are used to be able to see farther along the cable plant and narrower pulses are used when high resolution is needed, although it limits the distance the OTDR can see.Built-in Auto OTDR+Expert OTDR+OPM+OLS+VFL+Optical Loss Test+RJ45 Cable TrackerSKYSHL SS303T-2A integrates all the basic functions for testing fibers, including (Auto OTDR/Expert OTDR-1310nm+1550nm/24dB+22dB), visual fault location (650nm,10km), optical power meter (OPM-800nm-1700nm/-50~+24dB),optical light source (OLS-1310nm+1550nm),Optical Loss Test(OFLT-1310nm+1550nm) and RJ45 Cable Tracker(Test Distance&gt;300m). Engineers no longer have to carry a lot of equipment when working outdoors.SS303T-2A1(1310nm+1550nm 24dB+22dB) SM Fiber OTDR Key Parameters:Wavelength/Dynamic range:1310nm+1550nm/24dB+22dB(Max Test Distance:60Km); EDZ/ADZ:2.5m/6m.External interfaces:Mciro USB ,RJ45 Port and TF Micro SD.Display:3.5 inches HD TFT Color screen.Battery:3.7V/4000mAh lithium battery, continuous 11-15hours.Optical Power Meter:800nm-1700nm/-50~+26dB;Optical Loss Test:1310nm+1550nmLight Source:1310nm+1550nm(≥-5dBm/CW, 270Hz,330Hz,1kHz and 2kHz);VFL:10km(650nm±20nm/CW, 1Hz and 2Hz);RJ45 Cable Tracker:&gt;300m.Power Supply:AC/DC adapter:AC100V~240V;DC: 5V(2A).Compatible interfaces: SC, ST, FC, LC UPC&amp;APC adapter.Dimension:176*85*42mm/0.41kg(Include Battery).<
